◆ Rated load 40A
◆ 2.5kV dielectric strength (between coil and contacts)
◆ Insulation level: Class F
◆ Plastic sealed and dust proof types available
| Specifications | ||

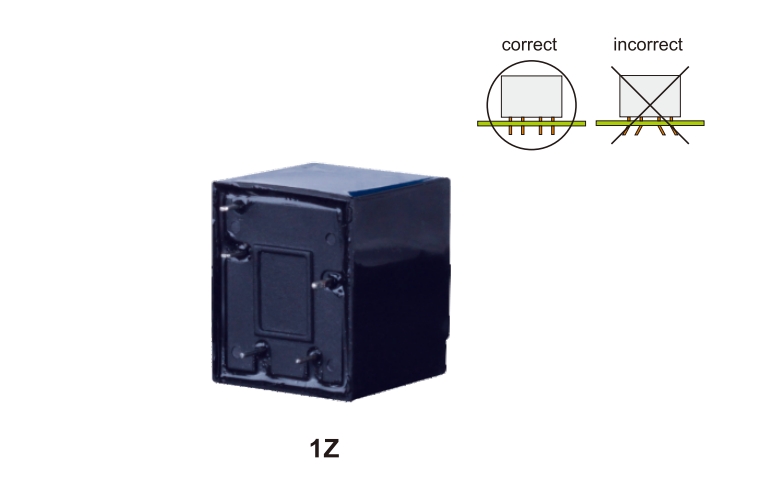

| Contact | Contact Form | 1Z |
| Rated Load (Resistive property) |
NO:30A 250VAC/30VDC NC:20A 250VAC/30VDC NO:40A 250VAC/30VDC NC:30A 250VAC/30VDC |
|
| Electrical/Mechanical Life | ≥100000times/10000000times | |
| Initial Contact Resistance | ≤100MΩ (1A 6VDC) | |
| Contact Material | AgSnO? | |
| Charact eristics | Insulation Resistance | ≥1000MΩ (500VDC) |
| Dielectric Strength | Between open contacts≥1500VAC/1min | |
| Between contact and coil≥2500VAC/1min | ||
| Operate/Release Time | ≤15ms/10ms | |

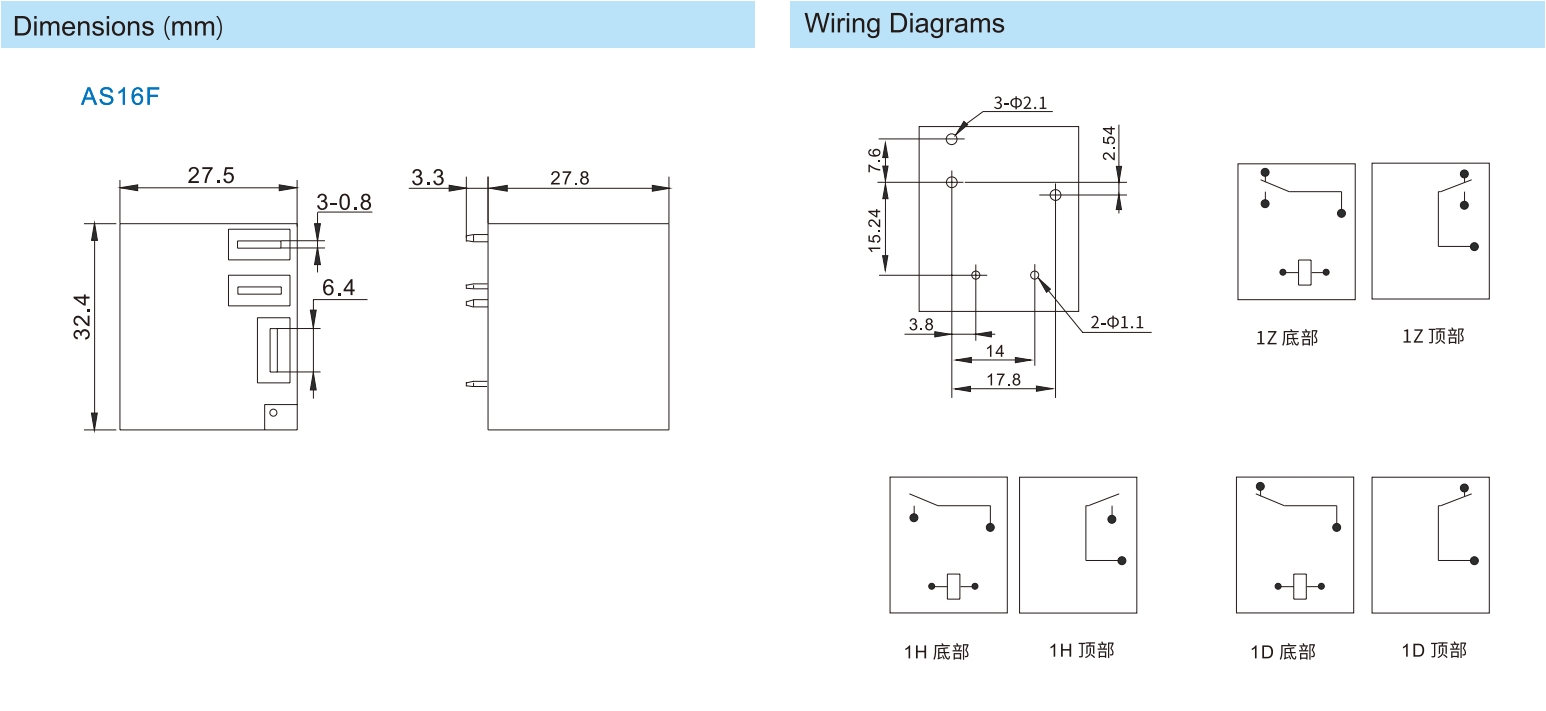

| Terminal Type | PCB& Quick Connection | |
| Coil | Operating Power DC/AC | 0.9W |
| DC Coil Data | |||
| Rated Voltage VDC |
Pickup Voltage VDC |
Dropoff Voltage VDC |
Coil Resistance Ω±10% |
| 5 | 3.75 | 0.5 | 30 |
| 6 | 4.50 | 0.6 | 45 |
| 9 | 6.75 | 0.9 | 100 |
| 12 | 9.0 | 1.2 | 160 |
| 15 | 11.25 | 1.5 | 260 |
| 18 | 13.5 | 1.8 | 385 |
| 24 | 18.0 | 2.4 | 660 |
| 48 | 36.0 | 4.8 | 2560 |
| 70 | 52.5 | 7.0 | 5500 |
| 110 | 82.5 | 11 | 13450 |
